The electrical load is turned off at the end or trailing edge of the alternating current ac waveform. Class 2 elv dimming drivers itd pleas e t ur eference.
Led Dimmer Led Dimmer Elv

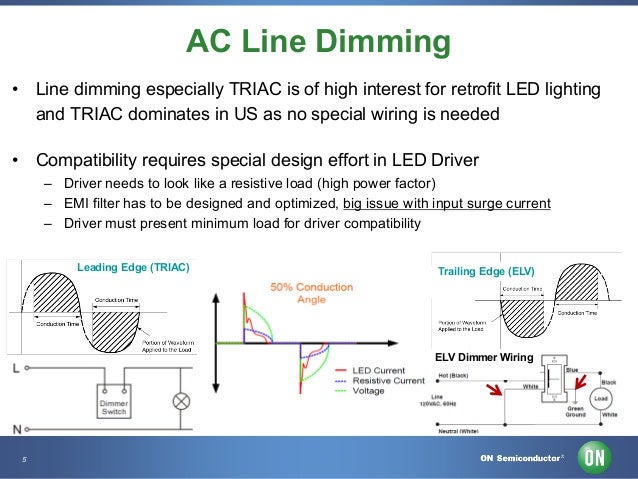

Elv dimming wiring diagram. They have a higher cost because of this but most led lights come with a warranty of some caliber. Important safety instructions 1. Allows smooth dimming down to 5 depending upon the dimmers limitations. An elv dimmer works like this. Check the wire markings to ensure they match the wiring diagram on page 2. Elv dimmers are also called simply electronic dimmers as well as trailing edge dimmers.
Refer to the national code ansinfpa 70 specifically for the installation of wiring and clearances from power and lighting conductors. Works better on leds than most magnetic low voltage mlv drivers. Read and follow all safety instructions. Call the lutron hotline 800 523 9466 to ordercall lutron customer service 610 282 3800 green 120vac or 277vac 60hz to additional ballasts dimmer orange or. Leds in general are known for their energy saving properties. Elv dimmer led driver hotline black commonneutral white yellow white black reverse phase elv wiring diagram line voltage 120v 120v output led load low voltage dc powered by ltf ltf llc.
Wiring diagrams wiring diagram 8 single pole wiring of a 3 way control model dvf 103p dvf 103p 277 wiring diagram 9 3 way wiring model dvf 103p dvf 103p 277 ca 3psh have questions. An electronic low voltage elv dimmer used in conjunction with an led light emitting diode is almost a match made in heaven. These names come from the way in which this dimmer transitions your leds luminosity. Elv dimming drivers from liton are the led driver most widely tested and approved by dimmer manufacturers see list. Limitations elv wall dimmers can be more expensive than incandescent or magnetic low voltage dimmers. 11966 oak creek pkwy.
