Dry contact may mean any of the following in electronics. Read all the tech tips take the quizzes and find our handy calculators at httpswwwhvacrs.
Faq Functional Devices Inc
Wet contact wiring diagram. Dry contact means no energy is supplied to the contacts completely passive and isolated. Place wet switch padded side down on the surface to be monitored. The dry contact closure wiring diagram is similar to other wiring diagrams. Instead of signalling horns and bells the dwa s can provide a dry contact closure for hardware connections such as a paging system or tone generator. Wires may be extended as necessary but avoid excess run lengths. Enjoy unparalleled protection from water damage with wet sounds state of the art equipment.
Dry contacts using the danfoss erc 213. Wiring design systems can become confusing when some switching devices send power to the load automatically while others do not. The below list shows the basic types of wiring connections available for di do ai ao signals. In order for the daq to read it it needs to have a defined voltage either a pull up to the positive supply logic 1 or pull down resistors to the negative supply logic 0 or an additional io. Connect wiring as shown in the diagrams on page 2. A dry contact is the synonym of volt free it is not wetted by a voltage sourcedry contact can refer to a secondary set of contacts of a relay circuit which does not make or break the primary current being controlled by the relay.

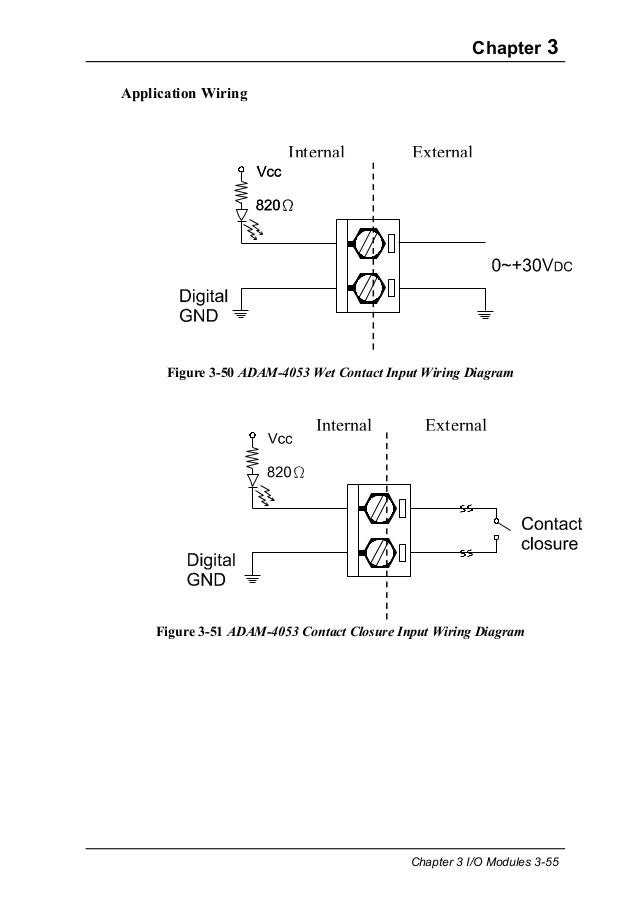

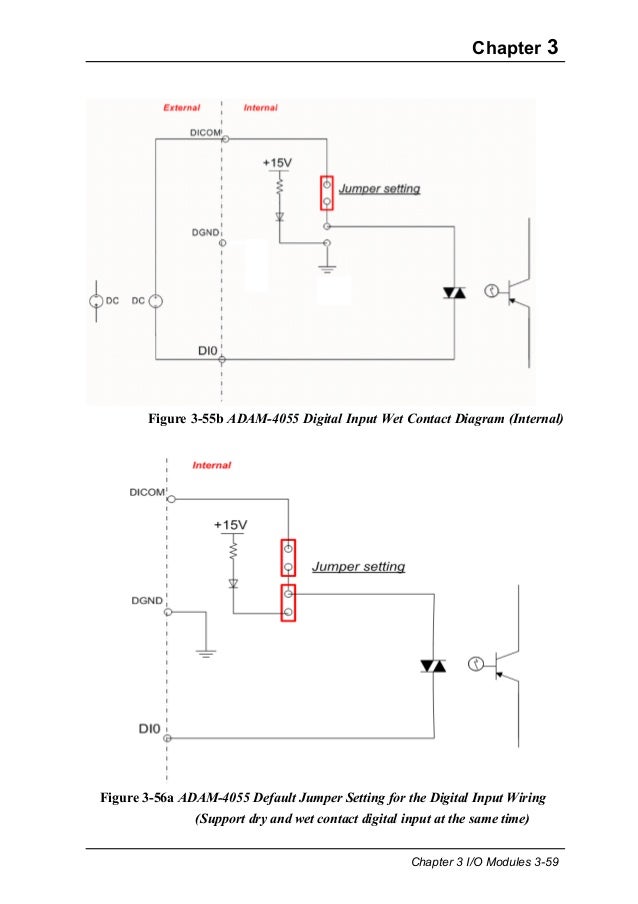

Usually some other contacts or devices have the job of starting or stopping the primary. Digital output do signals. Figure 355adam 4055 digital input dry contact wiring diagram 67 figure 356adam 4055 digital input dry contact diagram inter nal68 figure 357adam 4055 digital input wet contact wiring diagram 68 figure 358adam 4055 digital input wet contact diagram inter. No wiring exists from ac return to ckt 1b. Attached is a picture of the wiring diagram. Ws 1 wet switch.
No jumper exists from ckt 1a to ac in. Restore power to the system. Wet sounds marine stereo systems and equipment provide crisp high quality audio thats loud enough to be heard whether youre fishing a local pond water skiing on a lake or tubing on the ocean. Di with relay wet contact. Controlling selected components system components such as compressors electric valves condenser model no. Two wire connection with line monitoring.
Wiring diagrams of plc and dcs systems. Often called wet and dry contacts these devices are fairly easy to troubleshoot once the differences are understood. Digital input di signals. If so would it go to the constant or the accessory. Here is the wiring diagram the orange is supposed to go to the ignition switch i just dont know where to hook it up should i hook it up on the 3 buss post in the console. How to identify wet vs.
Di with relay dry contact.
