Rtd thermocouple wiring diagram. R1 r2 and r3 are fixed resistors. No current flows through it while the bridge is in balancesince l1 and l3 are in separate arms of the bridgeresistance is canceled. And rt is the rtd. Es is the supply voltage. Each wire is made of a specific metal or metal alloy. The following connection diagrams illustrate how to connect various rtd types to your daq device.
Eo is the output voltage. How to wire multiple thermocouples to a single instrument through a switch. 3 wire rtd wiring diagram in this circuit there are three leads coming from the rtd instead of two. The plot of this equation shows the rtd to be a more linear device than the thermocouple. A 2 wire configuration with a compensating loop is also an option. Shown is a 2 wire rtd connected to a typical wheatstone bridge circuit.
Furthermore thermocouples are designed to be more durable and react faster to changes in temperature because of that same design. For example the positive conductor of a type k thermocouple is made of a chromiumnickel alloy called chromel and the negative conductor is made of an aluminumnickel alloy called alumel. Most thermocouples cost 25 to 3 times less than rtds and although rtd installation is cheaper than thermocouple installation the savings in installation costs are not enough to tip the balance. How to wire one thermocouple to two different receiving instruments. Point io thermocouple and rtd modules catalog numbers 1734 ir2 1734 ir2e and 1734 it2i user manual. Compact 5000 io analog 4 channel currentvoltagertd thermocouple input module catalog numbers 5069 iy4 5069 iy4k the 5069 iy4 and 5069 iy4k analog 4 channel universal input module offers differential non isolated input channels and thermocouple and.

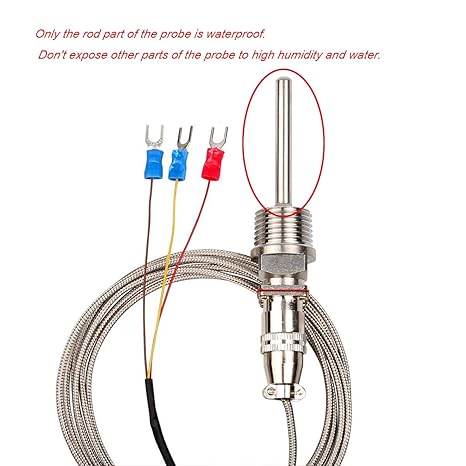

L1 and l3 carry the measuring current while l2 acts only as a potential lead. These two wires are joined to form a temperature measurement junction. Rtd pt100 3 wire wiring diagram amazon crocsee rtd pt100 temperature sensor probe 3 wires 2m cable thermocouple 58 572f 50 300c 1 2 npt thread industrial scientific. In the united states when youre connecting thermocouple wires to. 4 wire rtd signal connection connect each of the red leads on the positive side of the resistive element to the excitation positive and channel positive on the daq device. Rtd wiring configurations there are three types of wire configurations 2 wire 3 wire and 4 wire that are commonly used in rtd sensing circuits.
In this uncompensated circuit lead resistance l1 and l2 add. As you can see none of the diagrams are really complicated but there are some rules you need to follow to do it properly. A thermocouple is composed of two wires made from dissimilar metals. Rtd technical data see also. Connect the black or white lead on the negative side for the resistive.
