Apexi turbo timer wiring diagram. Location san jose ca. Splice the black ground wire from the relay into the en gine ecu ground wire. I have installed my auto timer. Apexi turbo timer wiring wdiagram 76 280z w 82 l28et. Reply to this topic. Apexi full auto timer for turbo na.
This wiring diagram booklet is designed for use with the rev speed meter 405 a912405 a916. Apexi r fit nissan wiring diagrams japanese. By hadesomega june 29 2006 in turbo supercharger. Oct 16 blitz turbo timer wiring diagram rhmaerkangorg also dodge stealth wiring diagram how many y s are in a vacuum line rhaskyourpriceme and apexi turbo timer manual. This entry was posted in electronics afc neo auto timer avcr din3 power fc safc turbo timer vafc wiring and tagged wiring diagrams on september 2 2013 by admon. Connect the 3 prong timer harness to the relay.
Hey there guys after alot of time reasearching how to install turbo timers etc i could not come up with and diy instructions for an apexi full auto timer for na turbo i have had the timer sitting on my garage wall of parts for a while and since there was no diy instructions anywhere for this timer on r33 i was affaid to install it. Apexi safcii 2 ecu instruction manual english. Apexi rsm rev speed meter round button manual russian. Hadesomega 10 hadesomega 10 member. 888 turbo a t5a ga70 1ggte 1gge 889934. Please refer to the vehicle specific wiring diagram.

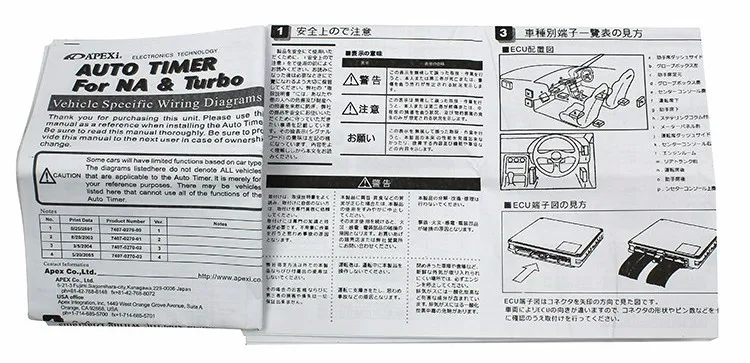

Apexi turbo timer wiring diagram wiring diagram is a simplified usual pictorial representation of an electrical circuit. Do you offer vehicle specific wiring diagrams for my car. It shows the components of the circuit as simplified shapes and the gift and signal links in the middle of the devices. This entry was posted in electronics afc neo auto timer avcr din3 power fc safc turbo timer vafc on september 2 2013 by admon. Apexi auto timer turbo timer ecu diagrams installation instruction manual. Get mad mcm gear gear here including stickers magazines dvds clothing mods and music at.

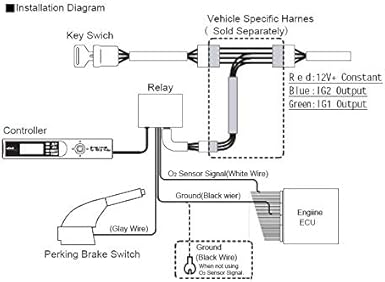

All wiring diagrams that we have are listed in the wiring diagrams for the product. Hks turbo timer wiring diagram as well c er battery hook up rh abetter pw zx apexi manual hks turbo timer contents turbo timer wiring diagram 33 great 55 elegant 3. When not using the o2 sen sor af ratio monitor and automatic after idling func tions connect the ground wire connector to the chas sis. Apexi auto timer turbo timer installation wire colours.
