When installing relay and vacuum switch make sure that the vacuum switch the switch with the r ubber hoses attached to it is not wired to the positive side. Detailed diagram of pump vacuum switch 4 begin electrical wiring by mounting the relay in a suitable location.

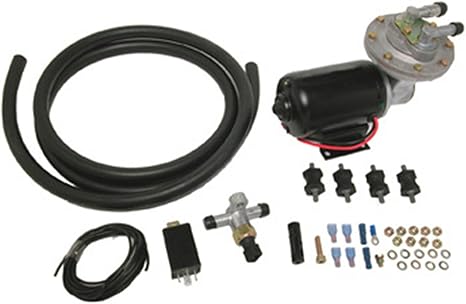

Ssbc 28146 Electric Vacuum Pump Kit

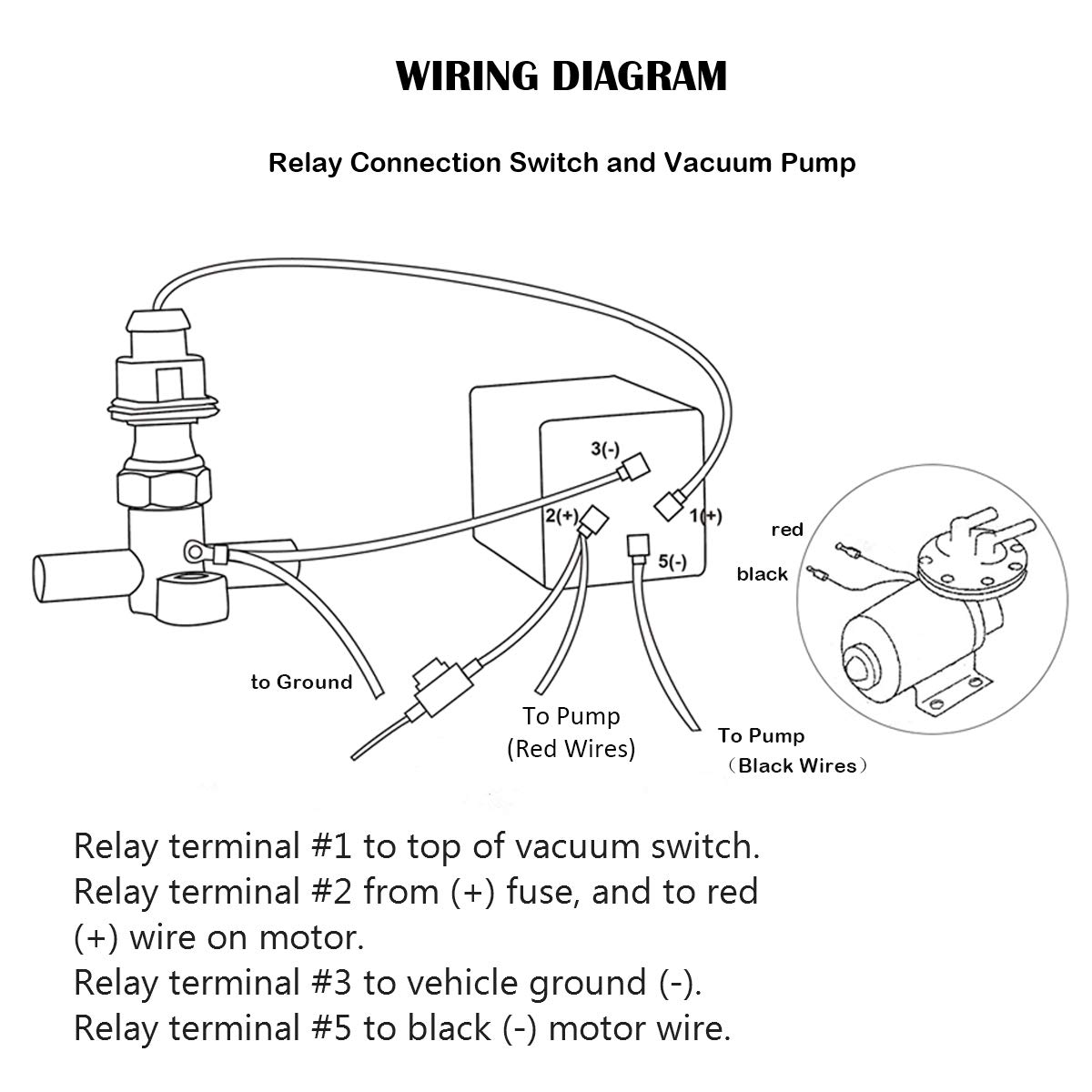

Ssbc vacuum pump wiring diagram. Imagine for instance pumping a liquid from one. Connect the ring terminal to the vacuum switch and the take the spliced in wire and connect it to a good ground point on the vehicle. 11congratulations you have completed the installation of the vacuum pump. Relay mounting tab does not have to be grounded. Find ssbc replacement electric vacuum pump relays re54wiring a vacuum pump hot rod forum. Detailed diagram of pump vacuum switch 4 begin electrical wiring by mounting the relay in a suitable location.
Detailed diagram of pump vacuum switch 4 begin electrical wiring by mounting the relay in a suitable location. Before you start the vehicle review the simplified wiring diagram pictures below to make sure all of. For example it can enhance a pumping system by reducing the load on an existing motor. A wire to the ring terminal. Relay mounting tab does not have to be grounded. Suction lift is a function of vacuum systems that can be used to advantage in piping figure 2.
Relay mounting tab does not have to be grounded. When installing relay and vacuum switch make sure that the vacuum switch the switch with the rubber hoses attached to it is not wired to the positive side. When installing relay and vacuum switch make sure that the vacuum switch the switch with the r ubber hoses attached to it is not wired to the positive side. Ssbc electric brake vacuum pump installation instructions. Booster pump wiring diagram. Hotrodders bulletin boardhow to wire a relay 3 thoughts on 28146re wiring diagram crystal g.
