We developed shelly 1 with an integrated web interface for device management and secure ota update. Anyhow even your suggestion would work but you would not see at the shelly app if someone switched on the lamp via the push button.
The Shelly 1 Smart Relay Is It Better Than The Sonoff Basic
Shelly 1pm wiring diagram. Connection diagrams shelly 1 continuation. Expand your shelly1 smart switch. The shelly 1 comes with firmware pre installed to use with the shelly app for iphone and android and the shelly cloud. Connect shelly 1 with the usb to uart convertor following the pinout diagram below. These schemes are for understanding and are not a do it yourself guide. Shelly 1 knows your location gives you high security and provides device access control.
N goes to neutral required l and i and the linelive input on the light switch which you determined above connect to linehot. Any work on low voltage grid are dangerous and can be fatal. Consumption history anywhere at anytime. Steps for flashing the mcu. The shelly 1 is about the size of two oreos stacked on top of each other which allows it to easily hide behind your existing switches. Modify a decora rocker switch to a momentary switch with ease create a secondary long press action to toggle additional devices andor automations in your home.

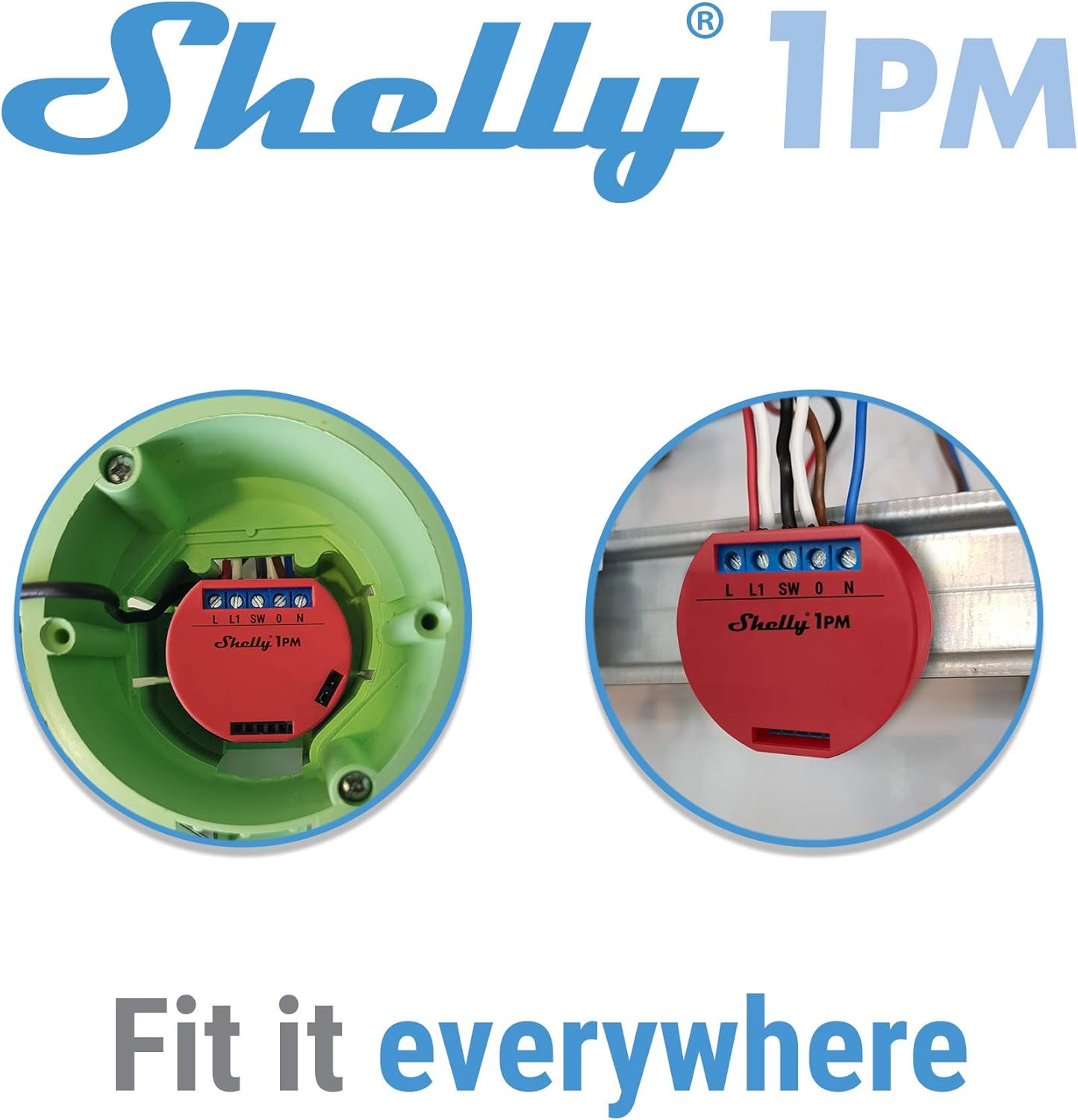

Shelly 1 relay wiring diagram for light switch. This device allows you to monitor the status and history as well as the current and. These devices can support loads up to 16 amps and the only difference between the shelly 1 and shelly 1pm is that the 1pm also has power monitoring so that you can see at a glance the amount of power being consumed by the devices or lighting connected to it. In order to boot the esp in flash mode gpio 0 must be connected to gnd when powering on the device. The most intelligent device you can have. Usb to uart convertor.
You can set your weekly schedules for onoff without the need of any additional equipment. We developed shelly 1pm with an integrated web interface for device management and a secure ota update. What is shelly 1pm. Welcome to the forum. Therefore have this work carried out by qualified electricians. Sw connects to the light switch input previously connected to load light o connects to the non hot load wire previously connected to the light switch.
It behaves pretty much like any other off the shelf smart home product in that regard. As stefan already stated. The standard way would be to connect the output of the push button to the sw input of the shelly and the o output of the shelly to the impulse relay.
