The following diagrams show some common relay wiring schemes that use 4 pin iso mini relays. Adding driving lights that come on with the headlight main beam.
Dorman 5 Pole Relay Wiring Diagram Taksayang 3 Mareikekirsch De
Rtt7121a 4 pin relay wiring diagram. Rtt7121 4 pin relay vs bosch 4 pin i am wanting to use a 6 relay box and what i find for 6 pin boxes have capacity for 5 bosch 5 pin relays and 1 rtt7121 4 pin relay. Yiephiot 2 pack car relay 4 pin 12v 40 amp model no. Please verify all wire colors and diagrams. There are 2 types of 4 pin relay available. 4x4 and off road forum inside relay 4 pin wiring diagram image size 640 x 480 px and to view image details please click the image. I believe i have some 5 pin relays that only use 4 pins but im not sure if a bosch 4 pin would work let alone the rtt7121 4 pi.
Relay diagrams pirate4x4. Jd2912 1h 12vdc 40a 14vdc car relay switch auto switches starters. 1 x ols rtt7121a 12v dc 40a 4 pin relay. Here is a picture gallery about relay 4 pin wiring diagram complete with the description of the image please find the image you need. Four pin relay basics and working animation. 4 pin relay wiring diagram.
Example relay wiring schemes. The interior mounted switch only draws minimal power though the interior fuse block to activate the relay. Normally open or normally closed. 4 wire interlocking sockets. Since there is only 1 no pin there will be only 1 nc pin in the connected pair. Now you happen to be studying online led store rtt7121a 12v 40a 4 pin relay direct replacement mechanical relay single pole single throw replacement for toyota 90987 02006 oem relay post.
The high current circuit in this relay feeds. What is a relay. 10x relays and 10x relay socket 4 wire 15cm. What is a 4 pin relay and how does it works. Excellent shake resistance performance. 5 x 12v automotive changeover relay 40a 5 pin car bike van fast free post high quality fantastic value uk stock.
To differentiate nc pin and common pin from the connected pins there is a need to apply voltage across the relay coil so as to activate it. I do believe today you are searching for starter merchandise so that you tend to be around the right website. See below for an example of a relay wiring diagram. Buy online led store rtt7121a 12v 40a 4 pin relay direct replacement mechanical relay single pole single throw. Buy relays pigtails and kits here. The other 1 remaining pin in the connected pair must be a common pin.

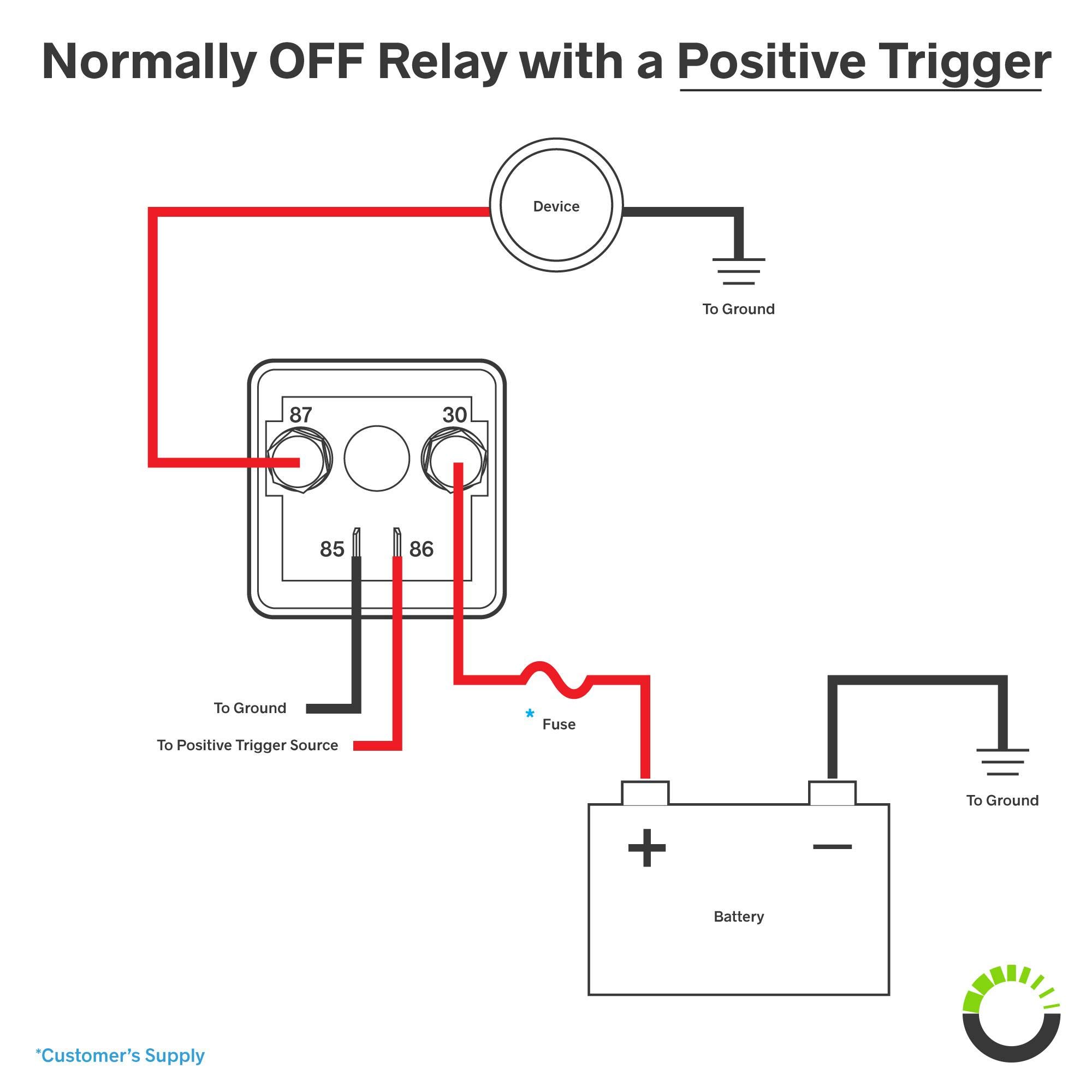

4 pin relay 4 pin relays use 2 pins 85 86 to control the coil and 2 pins 30 87 which switch power on a single circuit. Four pin relay basic operation. Note that each pin is numbered. Wiring with a relay allows the power to run straight from the battery through the relay mounted nearby directly to the lights. Lamphus off road led light bar wiring harness 4 pin relay 43 out of 5 stars 41. This simple circuit uses the power feed to the headlight main beam bulb as the trigger to energise a relay.
A normally open relay will switch power on for a circuit when the coil is activated. Basic car 3040 amp relay.
