Pct are one of europes leading designers manufacturers and distributors of towbars towing electrics and automotive products. With power on led and logicon 7 channel towing interface suitable for use on 12v negative earth vehicles only e11 02 0830 designed and manufactured by pct limited sheffield s20 3ghuk.

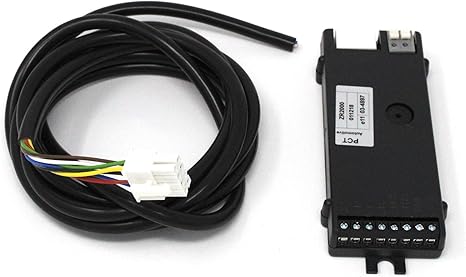

Pct Towbar Electrics By Pass Relay Zr2500
Pct automotive zr2000 wiring diagram. Turned on test with an automotive electrical circuit tester or a digital volt meter pct part zm1383 that the zr2500 logicon towing socket output terminals as specified in the fitting diagram below are energised to the vehicles power supply 12 volts dc. Other recommended diagram ideas. With vehicle manufacturers incorporating more technologically advanced safety systems the importance of fitting electrics which protect these is paramount. Pct automotive zr2500 wiring diagram 12 s wiring diagram n with 13 trailer plug united kingdom cool caravan towbar facts electrics wiring diagrams malcolms wiring diagram for self switching relay on 12s socket refrence tow 12 s wiring. Fitting instruction zr2501 batch 0000 pct 00 magnecon non electrical contact sensor head monitoring system for vehicle road lights. Visit our car motorbike store for a wide selection of top products including car parts travel essentials maintenance tools and much more.
Turn the vehicle engine off and remove the zr2500 logicon 15 amp supply fuse. Telephone 44 0845 123 1111 email techsupport at pctautomotivecom commissioning and test procedure 1. Should a fault arise with the towed unit the relay will only shut down the area at fault for instance the side light circuit and not blow the main module fuse as alternative products would. Switch the vehicle engine off and remove the 15 amp supply fuse to the zr1328a. Research fully committed to research and development extensive investment in new technology and production methods including state of the art towbar test equipment. Related photos in this diagram.
The logion towing interface module exclusive to pct automotive incorporates auto reset thermal current trips on all road light channels. Fitting instruction designed and manufactured by pct limited sheffield s20 3ghuk. Connect each of the audible relay and 12n socket wires to the vehicles wiring harness as shown in the fitting diagram below. Connect the yellow wire from the 12s socket 7 core cable to the vehicles wiring harness as shown in the fitting diagram below. Fitting instruction zk3000a batch 0000 pct 00 12n towing interface relay kit suitable for use on 12v negative earth vehicles only designed and manufactured by pct limited sheffield s20 3ghuk. Pct automotive recommends zm1383.
Pct automotive zr2500 wiring diagram. Telephone 44 0845 123 1111 email techsupport at pctautomotivecom zr1220 batch 0000 pct 00 the volton combi relay type approval number e11 02 0828 product description components item qty description the volton combi relay has been designed to switch a. Telephone 44 0845 123 1111 email techsupport at pctautomotive. Dedicated towing electrics kits.
