With all of the sensors removed i cant figure out how it would be possible. This is a quick video of an omc 460 with a pertronix ignitor ignition and appropriate diode pack to make the esa work properly.
Integral Eoportal Directory Satellite Missions

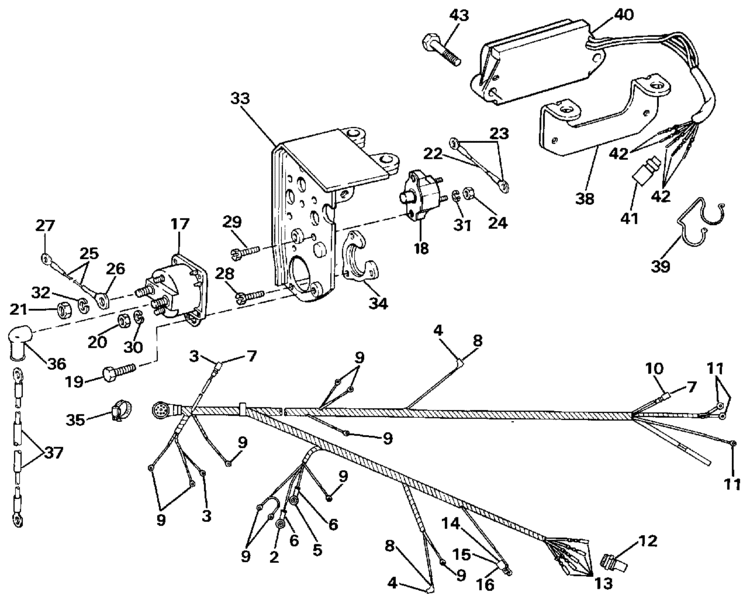

Omc esa module wiring diagram. Notice the stutter when the pangborn marine mi technician engages. After putting a lot of thought into it i just can not see how the system could stall the engine at the appropriate time when you shift and not at other times. With lower rpms and less load on the gears fit becomes easier for the dog style clutch to shift gears. When i did this it caused my motor to die completely. The instruction manual says to bypass the esa system. The esa module short for electronic shift assist is an electronic device that helps lower engine rpms and lightens the load on the outdrive gears.
Engine bracket esa troubleshooting part 4 omc cobra volvo penta sx duration. Michael romer 19019 views. Omc esa wiring diagram furthermore rv slide out wiring diagram also omc esa wiring diagram along with evinrude shifter diagram together with omc solenoid wiring diagram in addition esa module how does it exactly workelectronic ignition conversion kits for omc marine enginesomc shift assist module for 4 6 and v8s. With lower rpms and less load on the gears fit becomes easier for the dog style clutch to shift gears. The esa module short for electronic shift assist is an electronic device that helps lower engine rpms and lightens the load on the outdrive gears. Shift assist module for omc sterndrives.
