Numbersan ecosystem energi savr node system consists of an ecosystem energi savr node unit ecosystem compatible ballasts inputs wallstations and qs devices. Figure 5 block diagram describing computer analysis.
Lut Eli 3ph Emergency Lighting Interface Lutron From A fire

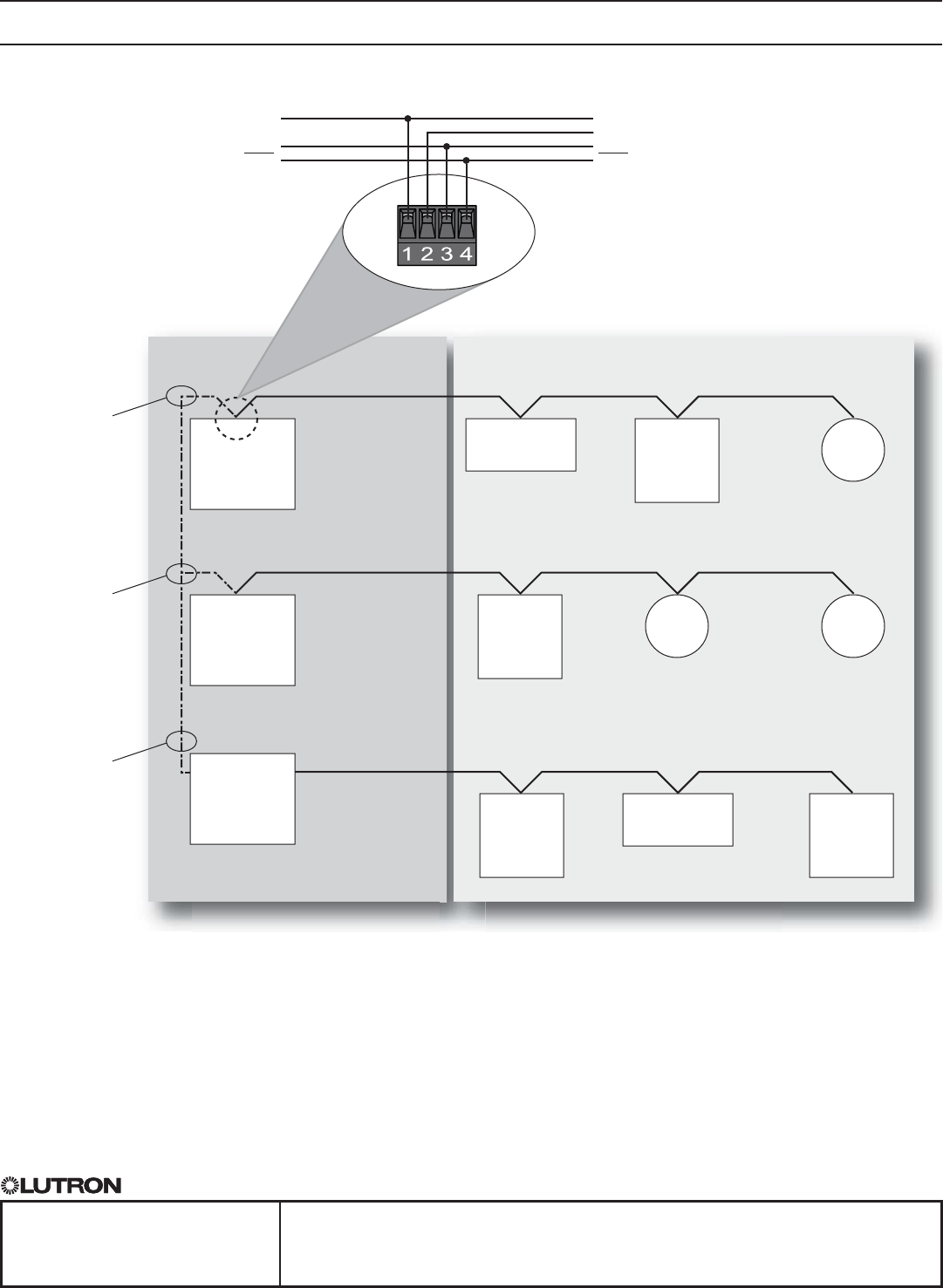

Energi savr node wiring diagram. 12 total devices 4 daylight. 1325 in h x 985 in w x 316 in d. Comprised of programmable modules wall controls and environmental sensors these components work together to save energy and improve occupancy comfort and productivity. Switch off power via circuit breaker or isolator before wiring or servicing the energi savr node qs. And energi savr node for 0 10 v. Energi savr node is a lighting and shade control solution designed for commercial applications such as office spaces and k 12university classrooms.
May result in serious injury or death. All lighting loads and the wired led on the energi savr node unit will light when properlyplease publish this lutron grafik eye wiring diagram graphic to your buddies family through google plus facebook twitter instagram or any other social networking site. The diagram on the previous page shows an example of control inputs that are part of a system. Energi savr node with softswitch. Do not wire when live. Mains voltage wiring the energi savr node qs operates at 220 240 v.
Energi savr node with softswitch wiring overview energi savr node with softswitch pg. The low profile plenum rated enclosure easily fits above a ceiling or into other small spaces with line voltage and low voltage wiring connecting to terminal blocks dimensions energi savr node with ecosystem. Use the following instructions to wire line voltage to the energi savr node qs. 12 counts as 1 qs device provides 14 power draw units pdus refer to spec submittal for details counts as 4 zones counts as 4 areas maximum of 16 occupancy sensors wired sensor connections.
