For door stations use the ms systems brand ms4dcxsc wire that is included with the dmc1h or dmc1hc wall housing kits. The dmc1 must be installed by a ms systems dealer or installers and must conform to all local building and electrical codes.
M Amp S Dmc1 Intercom System Upgrade Replacement 6 7 8 Wire 4

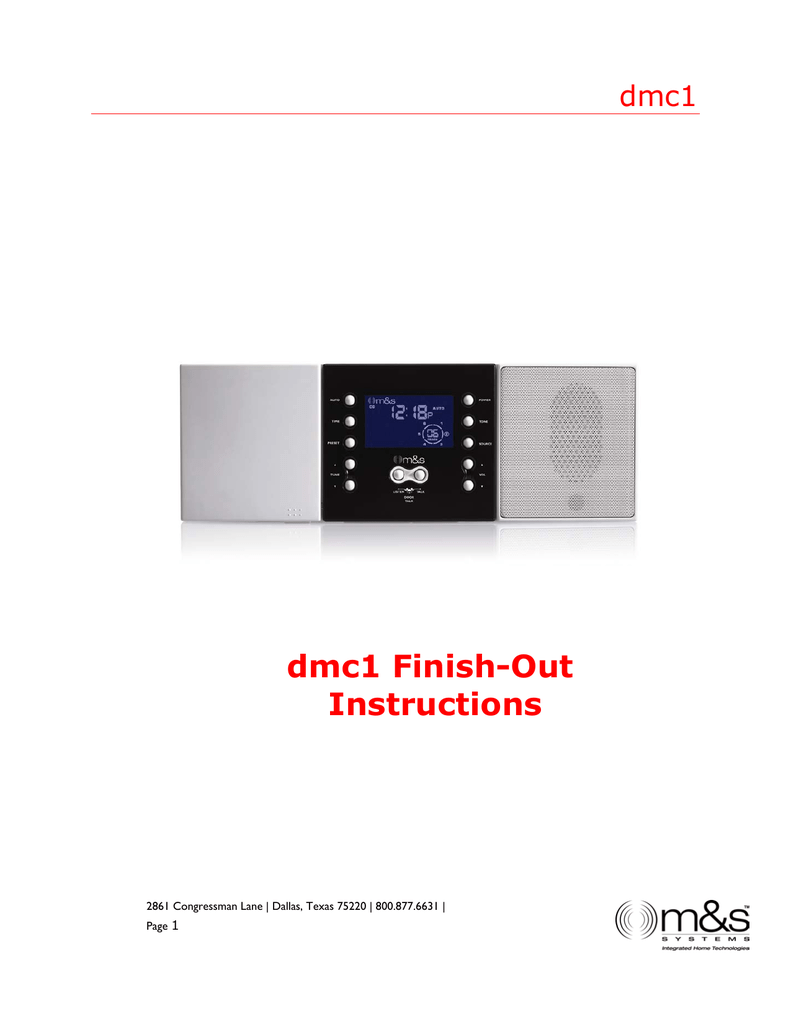

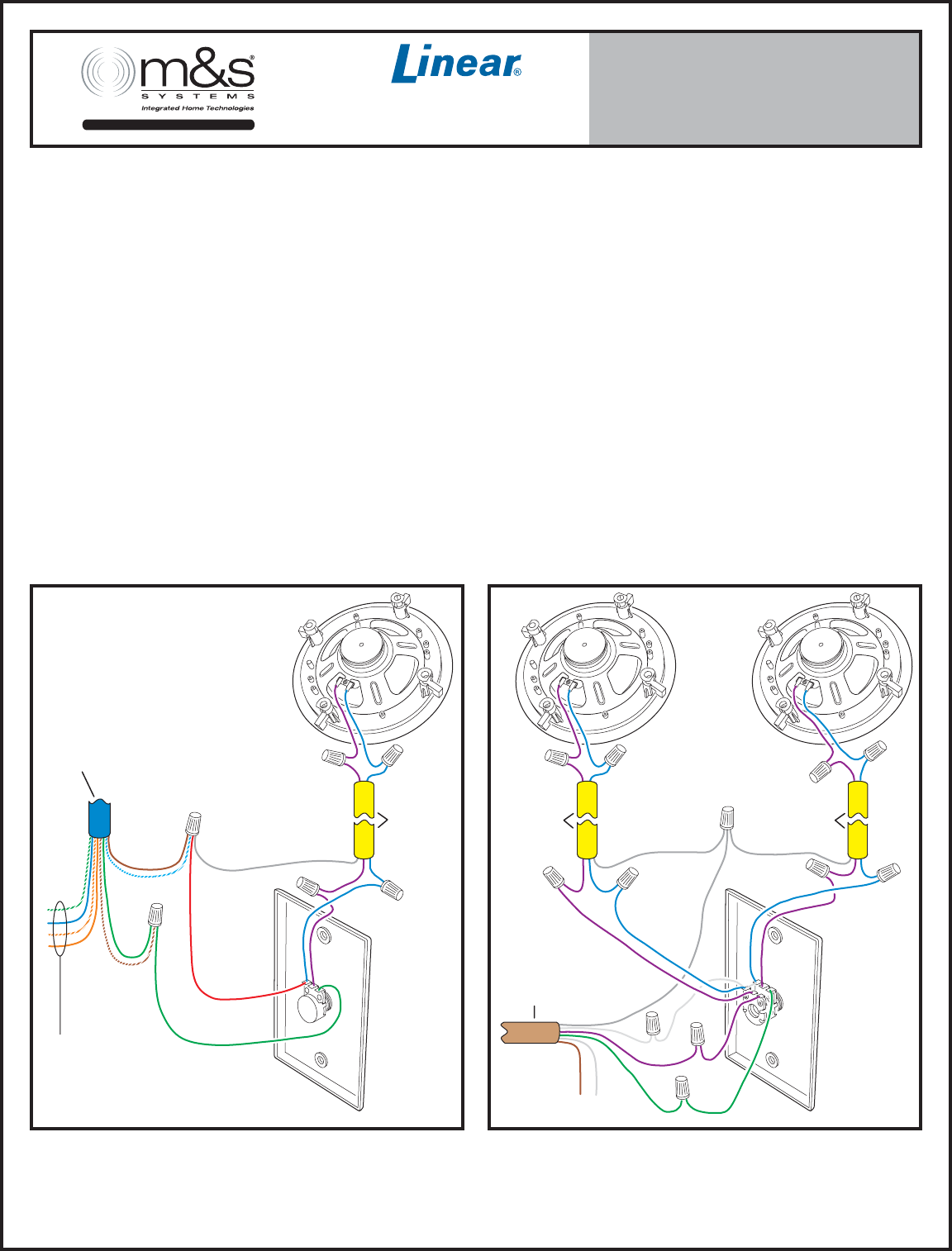

M s dmc1 wiring diagram. The dmc1 is ideal for both new construction and upgrading 6 wire intercom systems. Page 4 finish out the dmc1 system after the application of wall covering material. Use cat 5 wire for all dmc1 wire runs excluding the door stations runs. The ms dmc1 musiccommunication system master is a music and intercom system for home use. Door stations use the ms systems brand ms4dcxsc wire that is included with the dmc1h or intercom master station installation. Do not expose the dmc1 to moisture.
Related manuals for ms systems dmc intercom system ms systems dmc1 dmc1cd owners manual. The dmc1 must be installed by ms systems dealers or installers and must conform to all local building and electrical codes. This unit will call throughout the home and patio with an optional door chime and front door speaker so you can answer the door from any room in your home. Ms dmc3 4 music intercom system master station retrofit. Individual wire runs should not exceed 350 feet from any single room or door station to the dmc1 master station or 1000 feet total for the entire system. Use cat 5 wire for all dmc1 wire runs excluding door station wire runs.
Always follow these safety instructions. Connect each intercom wire to color coded terminal on master intercom. Do use only ms systems brand cable except for cat 5 rg 6 as called out in these instructions. Keep cat 5 wiring separate from any 120240v wiring dimmers. The cable is designed and constructed with electrical specifi cations necessary for proper audio performance. Do not use liquid or aerosols.
Doing so can create fire or shock hazards and. Ms systems portable speaker owners manual. We even offer home automation and security devices compatible with amazon alexa google home wi fi z wave zigbee and more. Do use only a dry cloth to clean the exterior plastics on the dmc3 4 master station and room stations. Do not power up the dmc1 master until all remote stations and speakers are connected. Download ms intercom wiring diagram.
Our free tech. Wiring a qualified electrician must run a 120v ac line to the dmc1 transformers. Install your dmc1 master intercomoptional cd player connect the supply line for the cd player with the red strip towards the inside and then plug in the transformers. Ms dmc1 music intercom system master station. Retain these instructions for future system reference. The warranty period begins on either a the date of purchase or installation date of this product or b the date of closing on a new residence in which this product was originally installed.
For the door stations we recommend the use of ms systems brand ms4dcxsc wire. Except for the airvac gold power units. Ms systems 2 year warranty ms systems warrants its products to be free of defects for 2 years. Structured wiring products thermostats and intercom systems.
