The lut mlc must be connected to the neutral and switched hot feed to the load. Install the lut mlc inside a load fixture or in a separate j box within the circuit.
Lutron Caseta L Bdgpro Wh Brochure 1000255357 Catalog
Lut mlc wiring diagram. Normally we recommend installing it in a junction box or a load fixture box. Do not connect the blue wire to any other wiring or to ground. Lutrons new facility management tool empowers you to manage your building from anywhere. To our valued customers. Install the lut mlc inside a load fixture or in a separate junction box within the circuit. The lut mlc was only designed to be used on lutron digital switches.
When i received the lut mlc i had to prepare it for use in my setup which involved a plug in dimmer rather than an in wall dimmer as the description and instructions contemplate. Connect one lead of the lut mlc to the neutral white wire. Each feature is designed around what is most important to you how well your building is working. Each feature is designed around what is most important to you how well your building is working. The lights go completely off now. Lutron lut mlc lutron load cap lutron lut mlc the lutron lut mlc is a minimum load cap that ensures proper function when fluorescent cfl or led loads are used.

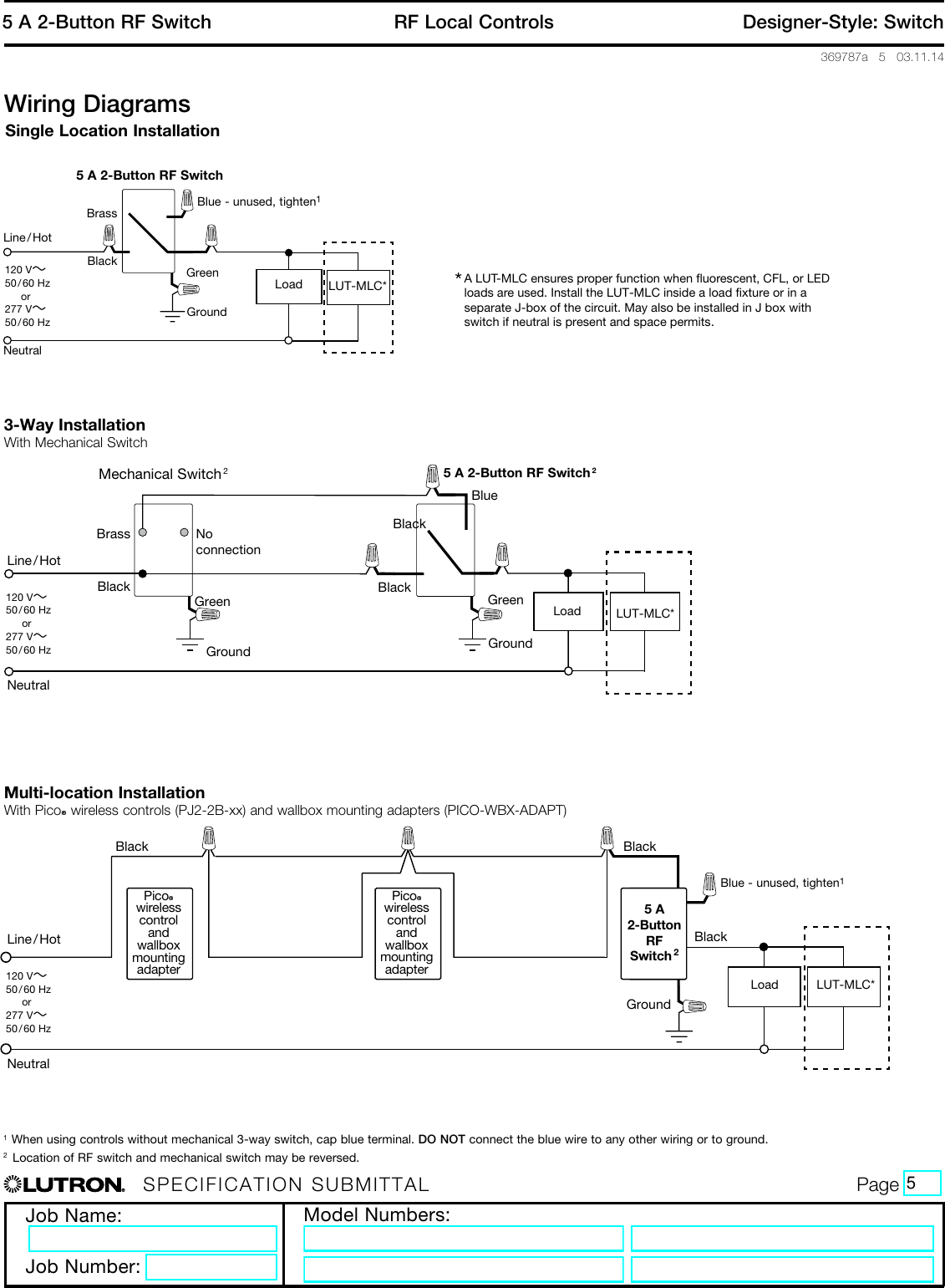

Wiring diagrams 1 when using controls without a mechanical 3 way switch cap the blue terminal. 2 a lut mlc ensures proper function when led fluorescent or elv loads are used. Sólo se requiere un lut mlc por interruptor. It all depends on you local electrical code. Only one lut mlc is required per switch. Lut mlc this instruction sheet provides wiring and installation instructions for switches controlling cfl led and fluorescent lighting without a neutral connection available.
On off off on off note nota. They should not be used on dimmers with the exception of ones rated for electronic low voltage such as the caseta pd 5ne. Wiring neutral earthground dimmed hotlive hotlive dimmed hotlive low wattage load neutral if necessary 120 v lut lbx 220 240 v lut lbx ce. Strip 05 in 12 mm insulation from wires before connecting. The lut mlc will only help with a light not turning completely off once the switch has been turned off. Switched hot cambiado a vivo lights lut mlc.
4 installing the lut mlc in a load fixture or junction box 1. Lutrons new facility management tool empowers you to manage your building from anywhere. First i simply stripped a little more insulation from the two wire leads. Easily monitor control and optimize a lutron control system from any tablet pc or smartphone. If code allows it and if you have a neutral wire in the wallbox and can fit the lut mlc in there you can wire the lut mlc between the output of the switch and the neutral wire in the box. The lut mlc solved this problem completely.
Easily monitor control and optimize a lutron control system from any tablet pc or smartphone. Lut lbx power interfaces pull 12 to 16 awg 25 10 mm2 copper cu wires 75 c minimum for input power and load circuit. Install the lut mlc inside a load fixture or in a separate junction box within the circuit.
