7 3 idi glow plug wiring diagram. A hot glow plug can ignite starting fluid before you have a chance to crank over the engine and will cause internal. On that system if one glow plug is burnt up than it will not let the main relay in the controller to kick in. The easiest way to check them is with a regular 12v test light. 6 9 diesel glow plug wiring diagram awesome glow plug relay with. 1983 ford f250 6 9 diesel glow plug relay manual bypass. 6973 idi73 turbo idi tips.
A word of caution about ether or starting fluids. Have you checked the glow plugs. It contains guidelines and diagrams for various types of wiring methods as well as other products like lights windows and so forth. So if you like to secure the awesome pics regarding 73 idi glow plug controller wiring. Check all the glow plugs make sure they are working. 73 powerstroke glow plug relay wiring diagram wiring diagram glow plug relay 7 3 valid 7 3 glow plug wiring wiring diagram library file type.

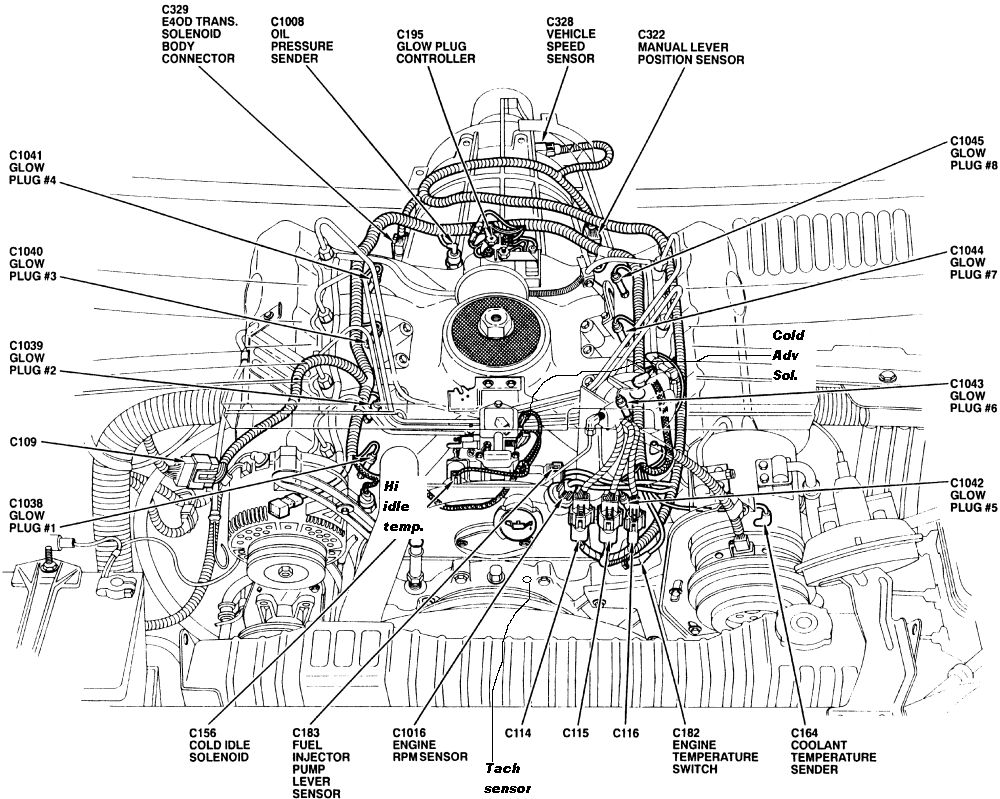

Glow plug wiring 6 9 wiring diagram data oreo 73 idi glow plug controller wiring diagram wiring diagram consists of several comprehensive illustrations that present the link of various products. In the case of a glow plug system problem plugging the block heater in for a couple of hours usually will get the engine warm enough to start. 1992 f250 73 idi diesel glow plug relay has power. In this video i show how to test the glow plug relay and solid state module on the older ford 73l idi engines as it is a bit different than the powerstroke 73l relay system as far as inputs and. How to replace the glow plug controllerrelay on the l idi diesel nuts from the terminals on the glow plug relay for the two large yellow wires and small red wire that the image at left is a diagram for the glow plug controller and relaythis awesome image selections about 7 3 idi glow plug wiring diagram is accessible to download.
